German First-Class Brand Model 92 Stainess Steel 440C Screw Element Twin Screw Extruder Parts

2. Screw Materials:

1). For wear application:
Tool Steel : W6Mo5Cr4V2;
PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V
2). For corrision application:
Nitrided Steel: 38CrMoAI;
PM-HIP material : SAM26 SAM39 CPM10V CPM9V
3). For wear and corrision application:
PM-HIP material:SAM26 SAM39 CPM10V CPM9V
4). Other Materials:
Stainless Steel: 316L, C276 etc.



3. Different types of kneading blocks are provided:

30 degree kneading block
45 degree kneading block
60 degree kneading block
90 degree kneading block
3KB kneading block
Reverse 45 degree kneading block

4. Process

5. Quality Control

1). Materials control: All the materials are purchased from the domestic brands or Eurpean twin-screw specialty materials suppliers,which tested by elemental analysis and metallurgical inspections to ensure the quality.
2). The internal splines is checked by the spline plug to ensure interchangeability of the elements
3). All screw elements are machined by CNC machines to ensure the shapes and tolerances of the elements
4). Adopt the European high-speed steel powder processing technology,and do the treatment according to the strict heat treatment 4.process to ensure the wear and corrosion performance same as the foreigh brands.
5). Perfessioal technical team can not only provide timely and accurate mapping sample design but also the combination of elements of technical services.
6). There are various prepared technical information and the fitxtures for the various brands extruders to ensure the timely lead time.The common components have a lot of stock, even the new one, it can be delivered within 45days.
7). The modern management system can ensure the products 100% qualified and tracked

6. Heat treatment

As we all know, heat treatment is very important in the screw production process. In order to ensure the quality of screw elements, Joiner has purchased professional heat treatment equipment to produce, so that we can control the construction process by ourselves.

7. Product accuracy

There are some differences between Joiner Machinery and other companies' production technology. Their finishing process is carried out before heat treatment, and the deformation after heat treatment is not controlled, so their accuracy is not easy to control. Our finishing process is carried out after heat treatment, which can eliminate the deformation of screw elements in heat treatment, so the precision is higher, and thus can achieve zero seam connection.

8. Production and Inspection of Equipment

We also have advantages in production equipment and inspection equipment.
Joiner has over100 advanced equipments such as CNC thread grinder, CNC thread milling, CNC kneading block grinder, CNC forming milling, 4-axis machining center, automatic deep hole grinder, CNC lathe, CNC surface grinder, CNC external grinding, CNC band saw, laser marking machine, vacuum quenching furnace and vacuum tempering furnace. After the raw materials enter the market, all the processing procedures are in-house.

9. Packing details :

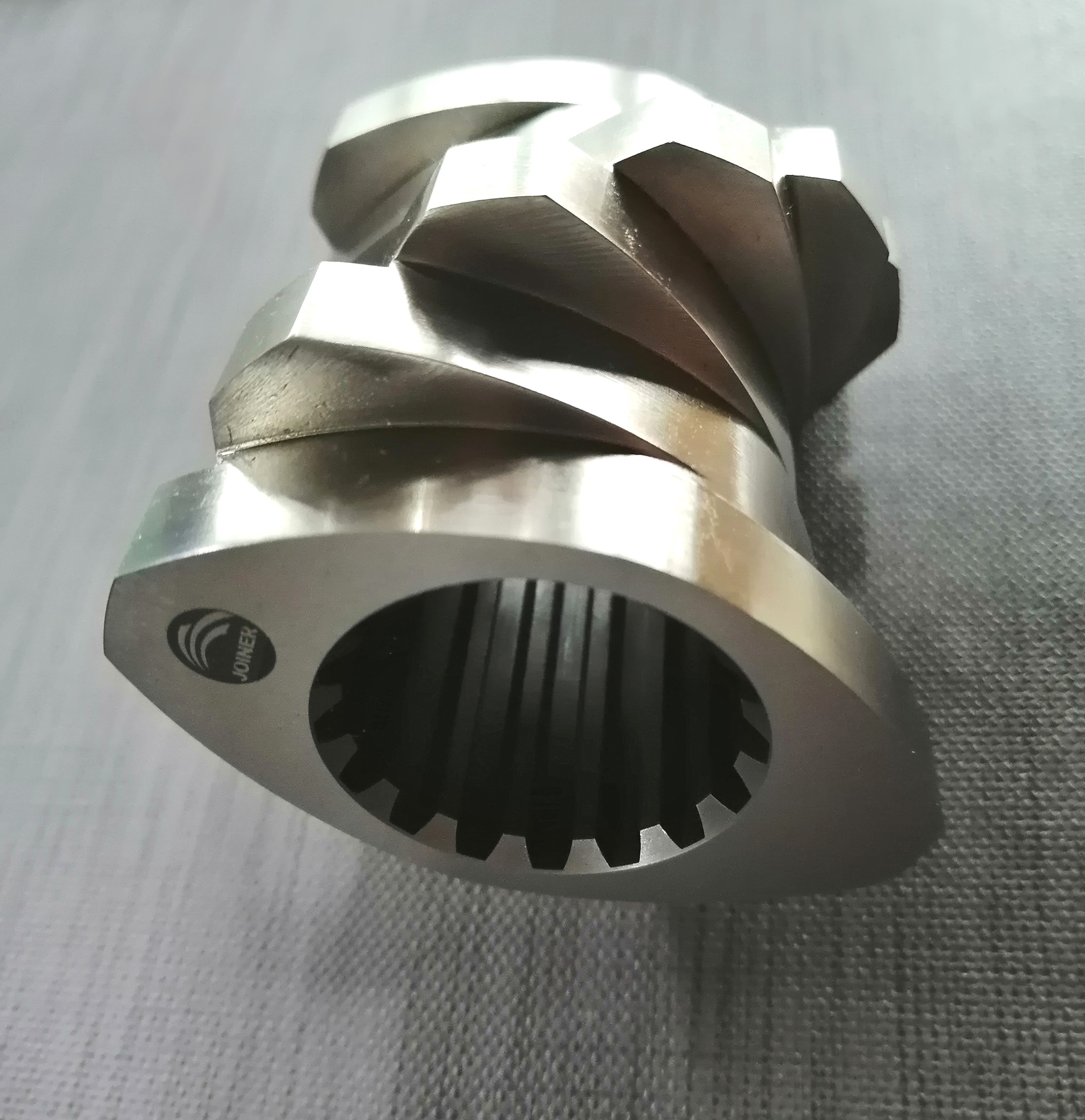

10. Products photos:
